Laser Scanning for MEP Retrofit Coordination
MEP retrofit scanning records visible mechanical, electrical and plumbing systems before design decisions are fixed. Plan access around the work area and capture the tie-ins and obstructions that could affect the design. Register and review the scans. Then prepare a point cloud, CAD or existing-condition BIM deliverable for the agreed software and scope.
Our Approach
How we help your team
A retrofit is easier to coordinate when your team can inspect the connections, routes and clearances that affect the work. We focus capture on those priorities so the resulting information supports your designers and trades.
We start with the retrofit decision. We identify the visible systems, tie-ins and spaces that may affect design, then plan scans around access and obstructions. We deliver a reviewed point cloud, CAD documentation or existing-condition BIM for the agreed software and scope.
Part 1 of 6
Begin with the decision that could become expensive
MEP retrofit risk concentrates where proposed work must fit around equipment, structure, ceilings and systems that remain in service. A missed beam, an assumed pipe elevation or an undocumented offset can move the problem into fabrication or installation, when the available choices are narrower and more expensive. The capture plan should therefore begin with the decisions that need reliable geometry: equipment replacement, corridor routing, riser connections, wall penetrations, valve access, service clearances or prefabricated spool interfaces.
Scanning every visible surface at one uniform setting is rarely the best commercial scope. Critical tie-ins may need closer stations, better angles and more deliberate verification than open circulation areas. A qualified provider converts the design and construction questions into capture priorities, then identifies areas that will remain uncertain because they are concealed, inaccessible or outside the agreed limits.
Part 2 of 6
Capture congested spaces before they close again
Mechanical rooms, interstitial floors and above-ceiling spaces contain occlusions from ducts, pipes, cable tray, insulation and structure. Because a terrestrial scanner measures visible surfaces, useful coverage comes from multiple viewpoints rather than one convenient station in the doorway. Access planning may include removal of ceiling tiles, escorts, equipment shutdown restrictions, infection control requirements or work during a limited off-hours window.
The field team should document which sides of critical systems were visible and which were not. Photographs and scan imagery help reviewers interpret the cloud, but neither can reveal conditions behind an opaque wall or above a ceiling that was never opened. Treating those areas as known creates more risk than stating the limitation clearly.
- Mark connection points, penetrations and clearance envelopes as priority capture zones.
- Plan viewpoints on both sides of dense racks and through transitions between rooms or levels.
- Confirm whether insulation, hangers, valves and small branches are in the modeling scope.
- Record inaccessible and concealed areas for the design team instead of silently inferring them.
Part 3 of 6
Register the data to the coordinate system the team will use
Separate scan stations must be registered into one coordinate system before the dataset can support coordination. A local building coordinate system may be sufficient for an isolated room. Renovations across multiple floors, campus work and projects tied to structural or civil control may require survey control and documented transformations. The right basis is the one that lets the receiving model and the field layout team reproduce the intended position.
Registration quality should be reviewed through network connections, target or cloud correspondences, control comparisons, representative cross-sections and local alignment around the tie-ins. A global score does not prove that every congested corner is complete or that a distant branch stayed within the project tolerance.
Part 4 of 6
Choose a deliverable that removes work for the next team
A registered point cloud is often the most direct reference for designers who can link RCP/RCS or another agreed format. Two-dimensional plans and sections can be efficient when a team needs a limited record. Existing-condition BIM is valuable when systems must be filtered, scheduled and coordinated as model objects, but modeling is an interpretive service with its own category, size and accuracy requirements.
The model should not promise more than the cloud supports. Round pipes, insulated systems and irregular existing construction are commonly represented with idealized objects. The scope should state the modeled categories, minimum element size, treatment of slopes and out-of-plumb conditions, coordinate basis and acceptance checks so the recipient knows what can be relied on.
Scroll horizontally to see all columns
| Project decision | Useful deliverable | Scope question |
|---|---|---|
| Route and clearance study | Registered point cloud with coordinated design model | Which systems and access zones govern clearance? |
| Documentation of existing systems | Point cloud, plans, sections or scoped BIM | Which categories, sizes and elevations must be documented? |
| Tie-in or prefabrication | Focused verified geometry with control and check dimensions | Which interfaces require independent field confirmation? |
Part 5 of 6
Use the scan to coordinate, not to automate judgment

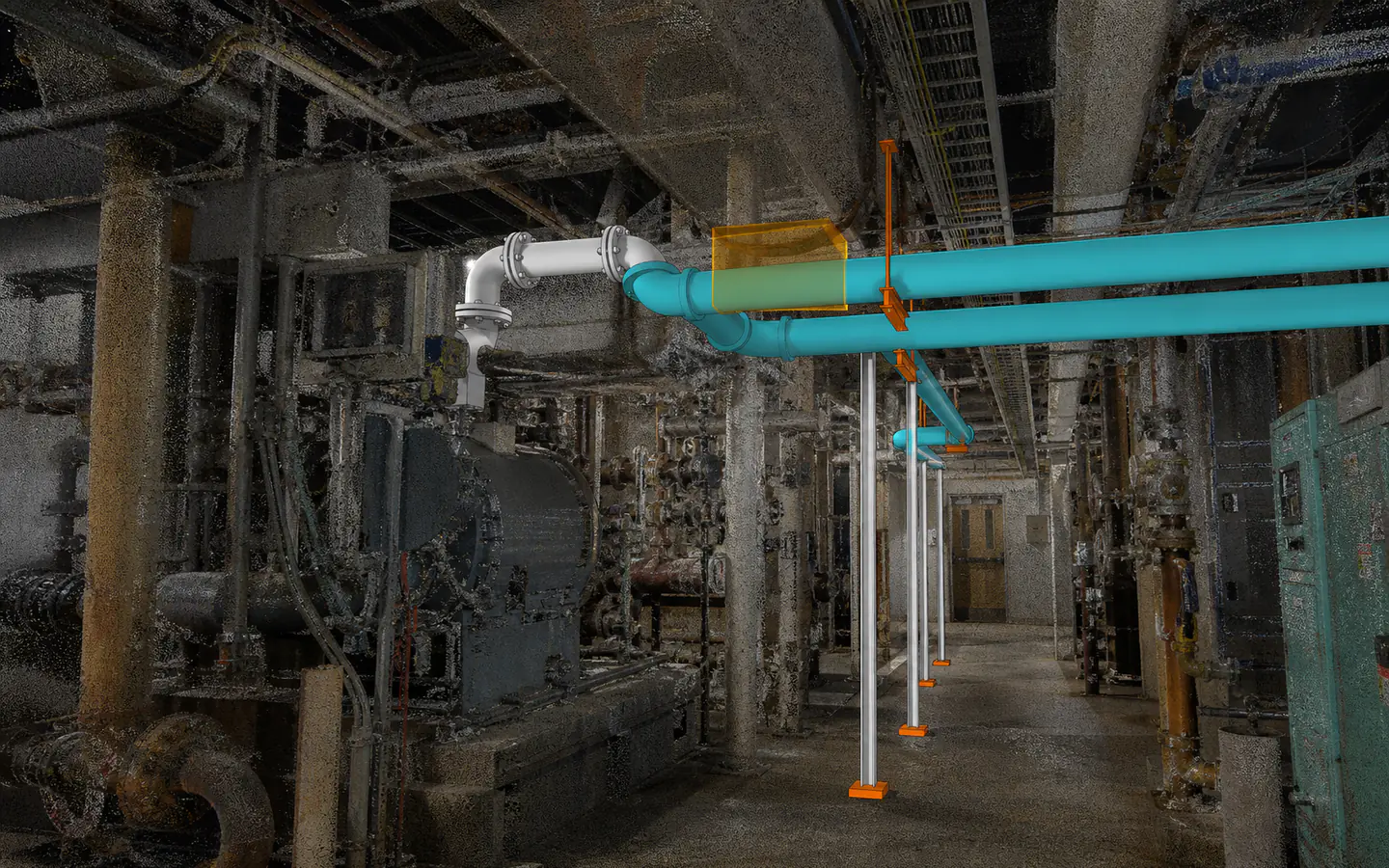

Point clouds let teams section congested conditions, compare proposed routes and investigate geometry without sending every discipline back to the site. Autodesk documents point clouds as an existing-condition reference in Revit, and interference tools can identify geometric conflicts between modeled systems. Those capabilities improve coordination only when the cloud is positioned correctly and the design model represents the relevant work.
A clash-free model is not automatically installable. Access, sequence, supports, insulation, tolerances, vibration, maintenance clearances and field assembly still require professional review. The scan reduces spatial uncertainty; it does not replace engineering, code analysis or trade knowledge.
Part 6 of 6
Build verification into the commercial scope
Before work begins, define a practical acceptance method tied to the retrofit decision. That may include checkpoint comparisons, spot dimensions at tie-ins, section reviews through representative systems, model-to-cloud deviation checks or a joint screen review with the MEP and VDC leads. The provider should also state coverage limitations and the coordinate checks performed at delivery.
This turns reality capture into a managed information service instead of a file handoff. Responsibilities remain clear across the project team. The owner knows the capture scope, and the designer understands what each deliverable represents. The contractor knows which interfaces require field verification before fabrication or installation.
For MEP retrofits, focus capture and verification on the geometry that affects routing, tie-ins, access and installation. That gives your team the information it needs for coordination.
