As-Built Verification for Prefabrication and Installation
As-built verification checks measured site conditions before parts are cut or an assembly arrives. Focus on features that control fit: tie-ins, openings, embeds, anchors, supports, access routes and nearby obstructions. Agree how to check those features. Scans support fabrication planning, but cannot guarantee that every field condition or installation tolerance has been captured.
Our Approach
How we help your team
Before your assembly reaches the site, your team needs reliable information about the interfaces that control fit. We plan capture and verification around those features, your agreed tolerances and the checks required before release.
We capture the features that control fit and compare them with the agreed design or fabrication reference. We document coordinates and areas we could not see, giving your team evidence to review before release. We also identify the field checks and responsibilities that remain before installation.
Part 1 of 6
Treat fit-up as an information problem
Prefabrication moves labor into a controlled environment and can improve consistency, but it also moves geometric decisions earlier. If the field interface is wrong or incomplete, the assembly can arrive with fewer options for adjustment. The business objective of verification is to identify material geometry and uncertainty before release, while the design and fabrication teams can still change the solution.
Start with the conditions that could prevent the assembly from fitting. These may include a flange plane, skewed opening, out-of-plumb column or anchor pattern. Also check for blocked rigging routes and conflicts with existing services. Those conditions become the capture and QA priorities. A general room scan may contain them, but a focused plan makes their importance explicit.
Part 2 of 6
Define the critical interfaces and tolerance stack
The project team should state which dimensions, planes, axes and clearances control acceptance. Scanner measurement is only one contributor to the final fit. Registration, control, surface condition, extraction, model idealization, shop fabrication, layout and installation each add uncertainty. The allowable field deviation cannot be assigned entirely to the scanning provider without considering the rest of that stack.
The capture requirement should be tighter than the final fit tolerance by an amount justified by the overall process, but there is no universal ratio that works for every project. The provider and responsible design, survey and fabrication parties should agree a measurable criterion and a verification method before fieldwork.
- Identify the datum, coordinate system and responsible source of control.
- List interface features and the dimensions or surfaces used to evaluate them.
- Account for insulation, coatings, irregular surfaces and inaccessible backsides.
- Reserve appropriate allowance for fabrication, layout and installation variation.
Part 3 of 6
Capture from geometry that can actually constrain the result
A critical connection should be visible from more than one useful angle when practical. Glancing incidence, reflective metal, dark surfaces, vibration and partial occlusion can weaken the representation. Targets or survey control may be needed when the assembly must relate to a wider coordinate framework. Short focused scans can still fail if their station relationships do not constrain translation and rotation around the interface.
Field notes and photographs should record surface identity and operating context. A cloud of insulation should not be interpreted as a pipe outside diameter, and temporary material should not be mistaken for permanent obstruction. When a required surface cannot be seen, the right output is a documented gap and a recovery decision.
Part 4 of 6
Extract geometry without hiding reality
Fabrication workflows may use the point cloud directly, extracted CAD geometry or a scoped BIM. Extraction can simplify the interface into centerlines, planes, cylinders and profiles, but the simplification must be visible in the documentation. Real columns are not perfectly vertical, openings are not perfectly rectangular and pipes may sag or change direction between supports.
Best-fit geometry is useful when the fit rule is understood. It becomes risky when the recipient assumes every modeled surface is a direct measurement. Delivery notes should identify how features were derived, which surfaces were sampled, whether nominal sizes came from owner data and where irregularity or noise affects the result.
Scroll horizontally to see all columns
| Interface | Useful evidence | Remaining decision |
|---|---|---|
| Pipe or duct tie-in | Centerline, end plane, surrounding clearance and control check | Connection allowance, field trim and final trade verification |
| Equipment base | Anchor or embed geometry, support plane and access envelope | Grout, leveling, erection and manufacturer requirements |
| Opening or penetration | Profile, thickness where visible and adjacent structure | Required clearance, firestopping, sleeve and hidden reinforcement |
Part 5 of 6
Compare before release, then verify before installation

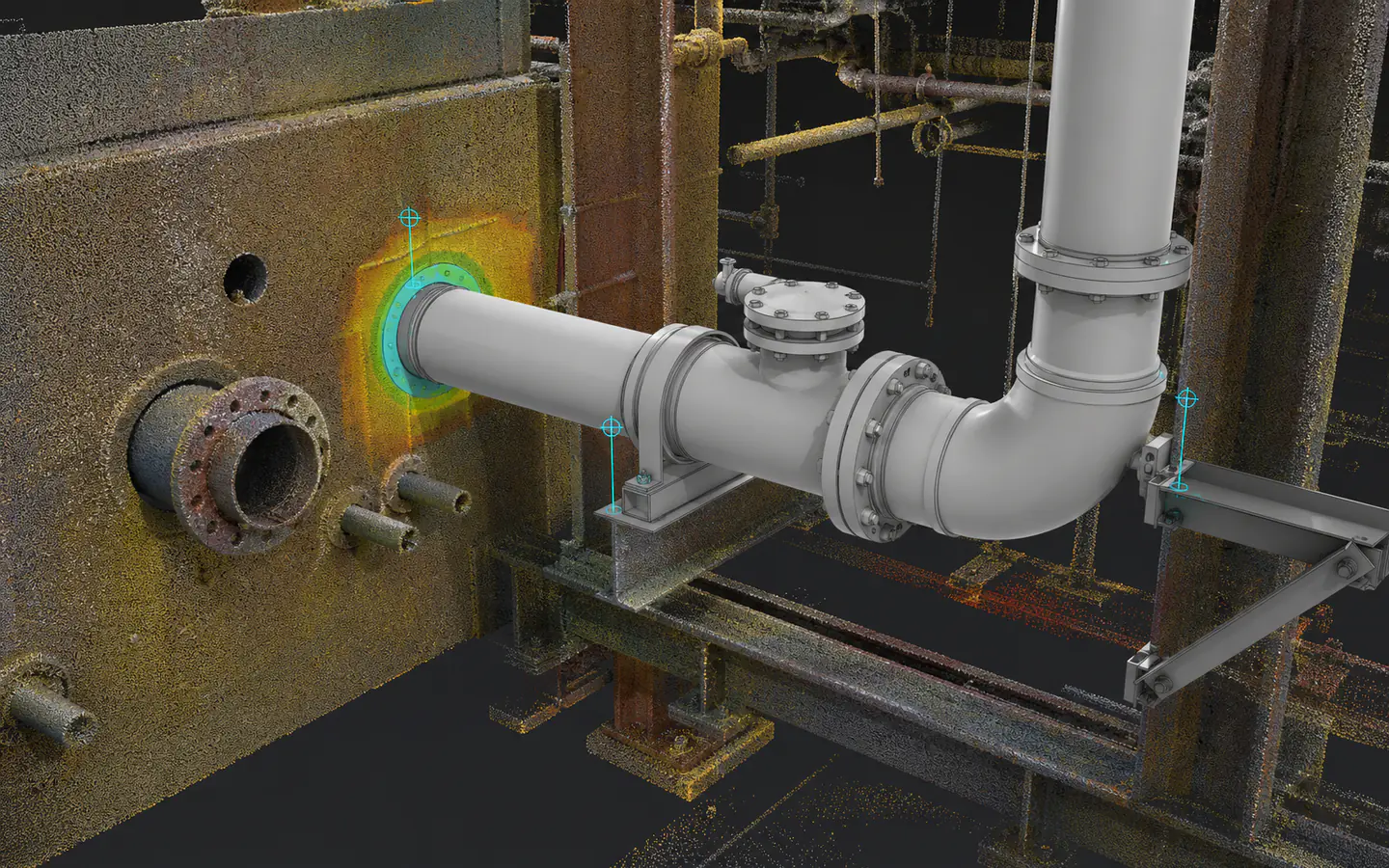

Model-to-cloud or design-to-cloud comparison can show where proposed geometry conflicts with the observed condition. Review should include the actual connection zones and access path, not only an overview heat map. Thresholds need units and a defined reference; color alone can exaggerate or hide small deviations depending on the scale.
Field conditions can change after capture. Other trades may install work, equipment may move and temporary access may disappear. Date the dataset and establish a release process. Critical interfaces may still require an independent check immediately before fabrication or installation, especially when rework would be difficult or safety consequences are high.
Part 6 of 6
Plan verification around the interfaces that matter
A commercial scope should name the assembly, interface areas, required output, coordinate basis, capture date, acceptance method and responsible reviewers. It should also state exclusions, access assumptions and what happens if critical geometry is obstructed. This lets competing proposals be evaluated on whether they resolve the fit-up risk rather than on scanner speed or point count.
We carry the work from field planning through registration and review, then prepare the point cloud, CAD or BIM deliverables agreed in your scope. To scope prefabrication verification, share the assembly, tie-in drawings, required model format and installation date. Explain what a mismatch would mean for the work. We can then focus capture and review on the interfaces that control fit.
Agree the critical interfaces, tolerance allocation, measured evidence and final field checks before releasing prefabricated work. A defined verification process gives your team a sound basis for assessing fit.
