Industrial Laser Scanning for Shutdowns and Retrofits
Industrial laser scanning supports shutdown and retrofit planning by creating a measured, reviewable reference for visible plant geometry before the outage clock is running. Its value is highest when the service is organized around the replacement path, tie-in points, crane or access envelope, temporary works, fabrication interfaces and coordinate controls that drive execution. A dense plant cloud without a defined decision, coverage review or delivery workflow can still leave the project team searching for the information it needs.
Move uncertainty out of the outage window
Industrial shutdowns compress demolition, installation, inspection and startup into a period where late discovery has direct schedule consequences. Existing drawings may describe the original design rather than decades of modifications. Hand measurements can be reliable for selected dimensions, but dense piping, cable tray, platforms and equipment often make it difficult to understand how multiple interfaces relate in three dimensions.
A pre-outage scan can give engineering, construction and fabrication teams a shared spatial reference while options are still available. It does not eliminate field verification or operational planning. It moves a larger share of geometry review, routing and constructability analysis into the preparation phase, where discrepancies can be investigated before labor and equipment are committed to the shutdown sequence.
Define the work package before defining the scan
The capture scope should follow the work package. For equipment replacement, that may include the equipment envelope, foundations, nozzles, adjacent pipe supports, electrical feeds, access doors, laydown areas and removal route. For a pipe retrofit, priorities may be tie-in geometry, support locations, flange orientation, surrounding interferences and the path available for spool installation.
Area-based language such as ‘scan the mechanical building’ is a starting point, not a complete requirement. Mark the systems that will be removed, retained or connected. Identify the smallest relevant features, operating restrictions and coordinate basis. These inputs help the provider set station spacing, resolution, target strategy and field time around the business purpose.
- List tie-ins, nozzle faces, baseplates and other interfaces that control the replacement design.
- Map exclusion zones, hot surfaces, hazardous areas, escorts and permitted work periods.

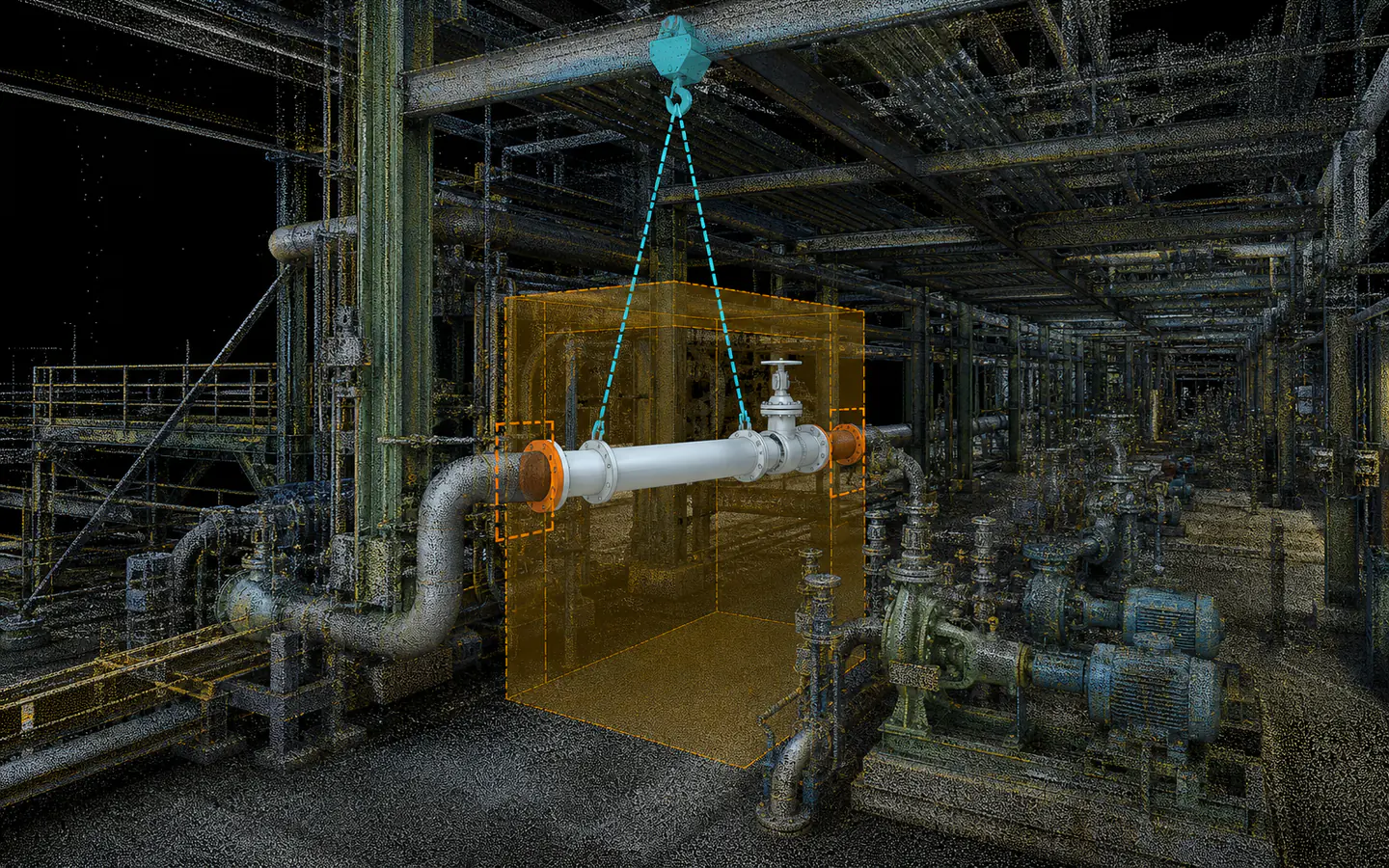

- Include removal, lifting and installation paths when constructability is part of the decision.
- Separate authoritative survey or process information from geometry observed in the cloud.
Plan safely for an operating facility
Reality-capture work must fit the facility's safety program. The owner and service provider should address site orientation, personal protective equipment, energized systems, classified areas, hot-work restrictions, line-of-fire exposure, mobile equipment, work at height and the scanner or accessory approvals that apply. A remote measurement does not make the field activity exempt from plant controls.
The field plan should minimize disruption without placing stations in unsafe or unstable positions. Temporary obstructions, steam, dust, reflective surfaces, vibration and changing operations can affect coverage or data quality. The team should review priority areas on site so an unusable viewpoint is replaced while access is still available.
Protect the coordinate and registration network
Large plants can create long registration chains through repeated pipe racks and narrow corridors. Repetitive geometry may look similar while providing weak constraints in certain directions. Redundant links, loop closure, targets and survey control help the team detect drift and connect the cloud to established plant coordinates when the project requires it.
Control should be designed with the responsible survey or plant team, and checkpoints should remain independent when they are intended to verify the solution. Registration review should examine both the wider network and local geometry around the critical interfaces. A plant-wide average cannot substitute for a tie-in check.
Turn the point cloud into an execution resource
Different work packages need different outputs. Engineering may use an indexed point cloud for investigation. Fabrication may need extracted geometry, pipe centerlines, flange planes or a scoped model. Construction planning may need sections through access paths, comparison views or an organized visual record. Asset-management data should be discussed separately because geometry alone does not establish an equipment tag, material, condition or maintenance history.
Model only what the decision requires and identify any idealization. Existing pipe is rarely perfectly straight, round or orthogonal; insulation may hide the actual outside diameter; and a point cloud does not expose wall thickness or internal condition. Delivery notes should distinguish measured surface, interpreted centerline, owner-provided data and unverified assumptions.
| Decision | Capture emphasis | Verification emphasis |
|---|---|---|
| Equipment replacement | Interfaces, foundation, access and adjacent systems | Known points, nozzle or base geometry and removal envelope |
| Piping retrofit | Tie-ins, supports, interferences and installation path | Local registration, flange planes and independent field checks |
| Plant documentation | Defined areas and visible asset context | Coverage map, coordinate basis and stated attribute limitations |
Review readiness before shutdown approval
A useful handoff includes the source basis, registration report, coordinate statement, coverage limitations, file formats, software versions and representative QA evidence. The project team should conduct a focused review around the critical work packages instead of only touring the full cloud. Open questions should be assigned before the dataset is treated as approved input.
Certified Laser Scanning can plan, capture, register, review and prepare the agreed point-cloud, CAD, BIM or documentation deliverable through one coordinated service path. The CTA for an industrial project should therefore ask for the shutdown decision, equipment or line involved, access window and required output—not simply a square-foot estimate.
Use industrial scanning to verify the visible interfaces and access constraints that drive the work package before the shutdown begins, then carry limitations and QA evidence into delivery.
