How Accurate Does 3D Laser Scanning Need to Be?
Laser scanning must be accurate enough for the decision the data will support. Allow for uncertainty elsewhere in the workflow too. Renovation models, plant tie-ins, floor studies and heritage records may need different scan plans and checks. Define the features to assess, the tolerance or accuracy framework, and the acceptance rule. State how the delivered cloud or model will be checked.
Our Approach
How we help your team
Your accuracy requirement should reflect the decision you need to make. We help translate that requirement into a capture and review plan that gives the critical features appropriate attention without adding detail your team does not need.
We agree which features matter and how the data will be used. We plan scan positions, survey control and independent checks around those needs. We assess registration quality and deliverable accuracy separately from scanner specifications and point density.
Part 1 of 7
Start with the cost of a wrong decision
Start by asking what would happen if a measurement were wrong. A planning model may allow more simplification than a connection made for fabrication. A small difference can matter at a door clearance, equipment tie-in or sloped drain. The same difference may have little effect on an early space plan. Accuracy should protect the decision that depends on the data.
Define the feature, decision and likely consequence first. The design, survey, fabrication or owner team can then set a useful limit. Tighter limits may add field time, control, processing and cost. Choose them when they improve the outcome. 'Highest accuracy possible' does not state a measurable requirement or explain who carries the project risk.
Part 2 of 7
Separate instrument performance from project accuracy
A manufacturer's specification describes the instrument under stated test conditions. It is useful evidence. It does not state the accuracy of every point in a registered project. Distance, viewing angle, reflectivity, environment and calibration affect the reading. So do scan positions and the way a surface is identified. Registration and control then affect alignment in the project coordinate system.
NIST's review explains why scanner comparisons and traceable measurements need defined test methods. ASTM E3125 covers point-to-point distance testing for spherical-coordinate 3D imaging systems. Those tests help evaluate equipment performance. The project still needs its own capture and acceptance plan for the actual surfaces, features and intended use.
Part 3 of 7
Do not confuse density, resolution and accuracy
Resolution sets the spacing of samples by angle at each scan position. Point density describes the spacing on a surface. Accuracy describes agreement with a reference under stated conditions. A higher resolution can capture a visible edge or small feature in more detail. It cannot recover a hidden surface or repair weak alignment. Extra points can also add work without useful detail.
Plan density around the smallest feature needed and the farthest practical scan distance. A smooth wall used for layout needs different sampling from a small pipe branch. An irregular historic profile has different needs again. Name the features in the requirement. Avoid choosing one density for the whole site simply because it was used on an earlier job.
Part 4 of 7
Allocate a realistic uncertainty budget
Uncertainty can enter at every stage. It may come from the scanner reading, target or feature extraction, registration, survey control or coordinate conversion. Cleaning the cloud, drawing or modeling from it, and the recipient's measurements can add more. Fabrication and installation add their own variation later. An accuracy plan considers this chain instead of assigning the whole tolerance to one scanner number.
Agree which result is being accepted: the instrument, registered cloud, extracted geometry, modeled object or installed work. Each needs a suitable reference and sample plan. For a statistical requirement, state the confidence level or standard deviation used. For a maximum allowed difference, explain how exceptions and outliers will be handled. These choices change what a passing result means.
Scroll horizontally to see all columns
| Question | Why it matters | Example evidence |
|---|---|---|
| What feature is evaluated? | Surfaces, edges, centers and modeled objects behave differently | Named walls, tie-ins, control points or model categories |
| What is the reference? | A comparison is only as reliable as its independent basis | Calibrated scale, survey checkpoint or approved reference geometry |
| What is the acceptance rule? | Average, percentile and maximum limits produce different outcomes | Documented sample, units, threshold and confidence basis |
| Which deliverable is accepted? | Cloud and interpreted BIM are not equivalent | Separate cloud, CAD and BIM review criteria |
Part 5 of 7
Use control and checkpoints deliberately

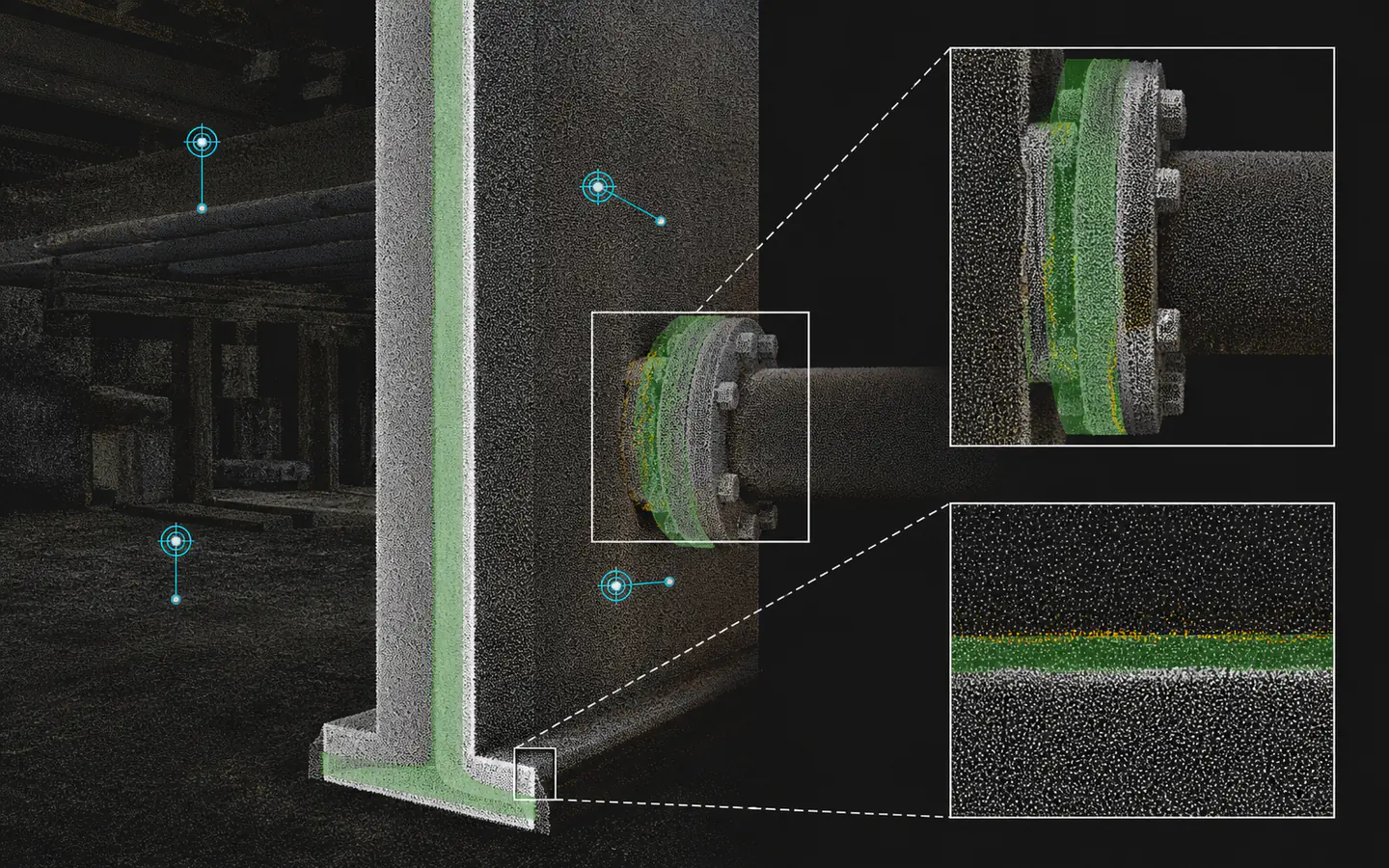

Survey control links scans to a defined coordinate system. It can also strengthen alignment across a large site. Points used to fit the scans are not independent proof of that fit. Withheld checkpoints provide a separate comparison if they are stable, well spread and measured to a suitable standard. Record the control provider, units, datum and any coordinate conversion.
Check critical geometry locally as well. The network may fit its control points while a weak branch performs poorly elsewhere. A hidden area or an extraction choice can also affect local results. Combine overall coordinate checks with sample sections, point-to-surface comparisons and dimensions at the important connections. Choose checks that address the features your team will use.
Part 6 of 7
Apply an accuracy framework without misusing it
The U.S. Institute of Building Documentation publishes the Level of Accuracy, or LOA, specification. It helps teams state measurable accuracy for building records. Select the LOA from the required tolerances and explain its statistical basis. Apply it to named elements and deliverables. A label placed on the whole project is not enough to define the requirement.
Level of Development, or LOD, addresses a different question. It describes the content and reliability of BIM elements. LOA, or another project accuracy rule, addresses how closely geometry agrees with a reference. A detailed model can still be in the wrong place. An accurate cloud does not automatically contain model objects. State both requirements when the Scan-to-BIM scope needs them.
Part 7 of 7
Write acceptance into the proposal and delivery
The proposal should state the intended use, areas and features to check. Include project coordinates, responsibility for control, required output and acceptance method. List exclusions. Explain what happens if a surface cannot be reached or checked as planned. These points make provider comparisons more useful than a list of scanner specifications alone.
At delivery, include the registration and control summary, test results and coverage limits. State software and export versions, plus any model-specific checks. We connect these decisions from capture planning through registration and review. The agreed point cloud, CAD, BIM or documentation handoff should give your team both the files and the evidence needed to assess them.
Name the features and decisions that need accurate data. Check the delivered result against an independent reference. Point density and a scanner brochure value do not provide that proof on their own.
