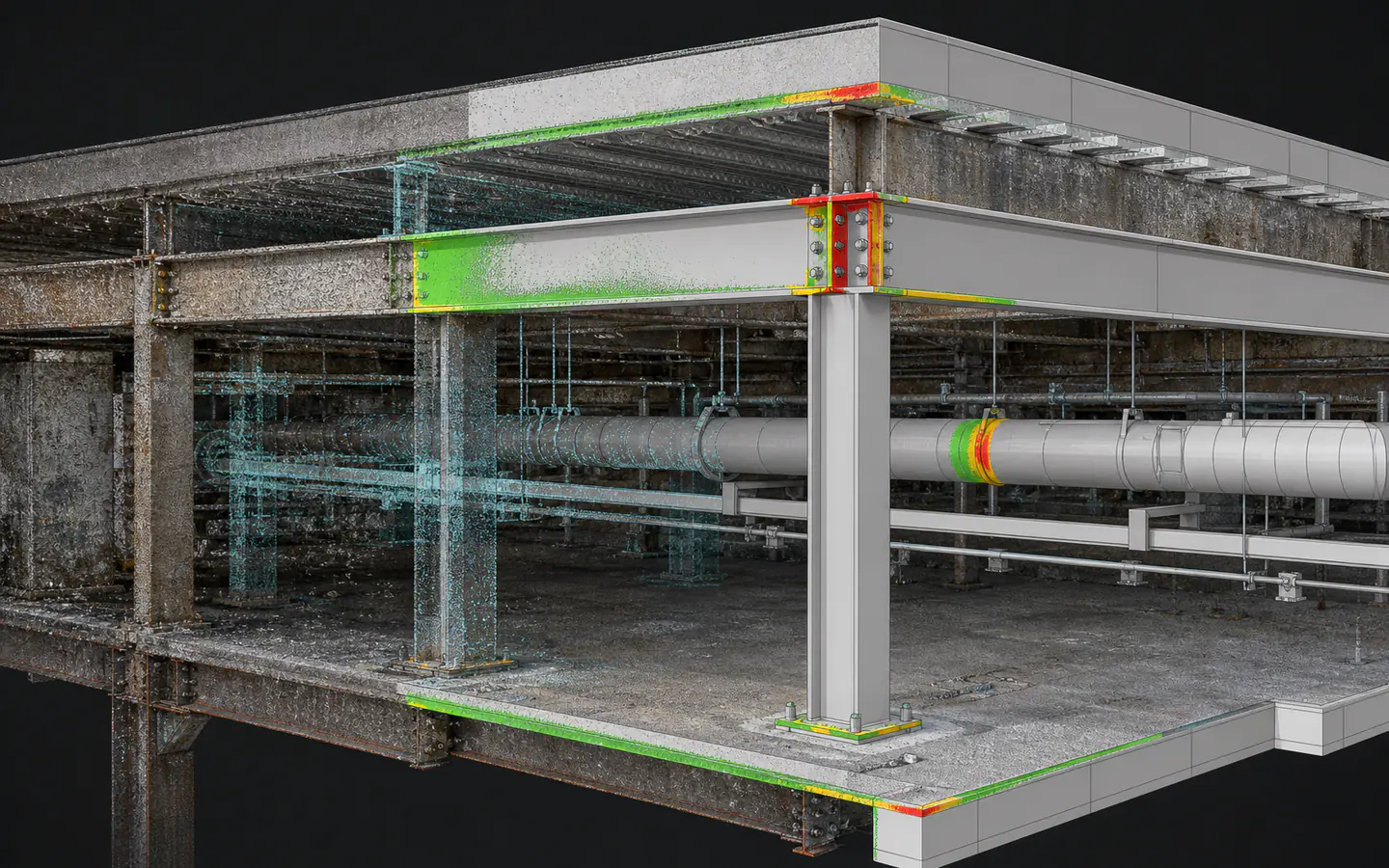

Construction team comparing a dated site point cloud with a coordinated model and color-coded deviation review
Construction team comparing a dated site point cloud with a coordinated model and color-coded deviation review

Direct Answer

Construction Progress and Deviation Analysis with Laser Scanning

Construction progress and deviation analysis uses dated, registered observations to compare visible installed conditions with an earlier capture, design model or defined reference. It can support progress evidence, dimensional review and issue prioritization, but only when capture extents, coordinates, timing, classification and acceptance thresholds remain comparable. A color map or completion percentage is not self-validating; the team must define what was observable, what reference was approved and how exceptions will be reviewed.

Choose the decision before choosing the repeat interval

Progress capture may support owner reporting, schedule discussion, quantity analysis, record documentation or verification before work is concealed. Deviation analysis may support slab review, structural position, installed MEP comparison or handover quality control. Those decisions require different dates, areas, references and levels of detail.

A weekly scan has little value if the relevant work is hidden between visits or if the team does not have a defined review process. Schedule capture around milestones that change the available evidence: before concrete placement, before ceilings close, after primary installation, before equipment setting or at agreed payment and handover points.

Establish a comparable baseline

Repeat datasets need a stable coordinate basis and documented extents. Survey control, permanent targets or verified project coordinates can help align campaigns, but their stability and responsible owner must be understood. If each capture is independently best-fit to changing construction geometry, apparent movement may reflect registration choices rather than physical change.

Record the capture date, active work, access, temporary material, weather where relevant and areas that were obscured. A progress comparison should distinguish not observed from not installed. Stockpiles, lifts, formwork and moving equipment can create surfaces that are real at capture time but irrelevant to permanent-work assessment.

Match coverage and density across campaigns

Comparable analysis depends on seeing the same relevant surfaces from useful angles. Station count and placement may change as construction advances, so the plan should protect views of control, priority work and reference geometry. The required density should follow the features being evaluated; large earthwork surfaces and small MEP supports do not need the same acquisition approach.

Review the data in the field when a missed area cannot be recovered after the next trade mobilizes. For repeat programs, a written station and coverage plan reduces variation between crews and provides a record when site conditions force a change.

  • Define milestone dates around concealment and decision deadlines.
  • Preserve stable control and independent checkpoints where accuracy requires them.
  • Tag inaccessible, temporary and active-work zones rather than classifying them by assumption.
  • Keep the comparison reference and model version under change control.

Distinguish progress evidence from earned-value approval

A scan can show visible geometry at a point in time, and NIST research has long examined non-intrusive scanning for construction status and volume change. Translating points into installed quantities or percent complete requires classification rules, scope boundaries and commercial agreement. Hidden work, commissioning, testing, material quality and incomplete connections may not be represented by geometric presence.

Use scanning as evidence within the established payment or schedule process, not as an automatic replacement for contract administration. State which categories are evaluated, the minimum visible condition that counts, how partial installation is treated and who approves exceptions.

Make deviation maps measurable and reviewable

Scan-to-model comparison calculates distance between observed surfaces and reference geometry. Results depend on the model version, alignment, comparison direction, surface sampling and color thresholds. A broad heat map can quickly prioritize areas, but it should be followed by sections, dimensions or point-to-surface checks at the relevant features.

The design model may represent nominal geometry while construction tolerances permit variation, and an existing-condition surface may be intentionally irregular. Define the acceptable band with the responsible discipline and contract documents. Avoid presenting a visual deviation as an engineering acceptance decision when the service scope does not include that authority.

Reality-capture comparisons and their limits
ComparisonUseful resultImportant limit
Date to dateVisible geometric change between campaignsChanging access, temporary work and alignment can affect the result
Scan to design modelLocation and magnitude of surface deviationNominal model geometry and approved construction tolerance are separate
Scan to quantity surfaceVolume or area estimate under stated boundariesClassification, occlusion and baseline definition govern the calculation

Deliver issues that teams can act on

A large point cloud and hundreds of colored exceptions can overwhelm a project team. Organize findings by location, system, severity, decision date and responsible reviewer. Include saved views, sections, coordinates and a link back to the source context. Track the reference version so an issue is not raised against an obsolete design state.

The most useful workflow connects capture, registration, comparison and communication. Certified Laser Scanning can provide the measured baseline and scope-defined analysis outputs, while the project’s design and construction authorities decide acceptance and corrective action. A strong inquiry identifies the milestone, reference model, evaluated systems, tolerances and reporting audience.

Plan the final record before the project ends

Repeat capture can become a valuable record when datasets, model versions, coordinates and findings are organized consistently. Decide which campaigns and analysis products will be retained, which format the owner can open and how the final approved condition relates to operations or as-built documentation. More files are not automatically a better handover.

At closeout, identify which conditions were captured after final installation, which remained concealed and whether later changes occurred. The final record should state its dates and limits so operations teams do not mistake progress evidence for a complete verified asset model.

Project takeaway

Repeat scanning becomes useful construction evidence when the baseline, coordinate system, capture timing, comparison rule and human approval path are defined before the first campaign.
